Mozilla Thunderbird 3 - Alternate Port - Setup Guide

Important Points

  • First you need to make sure the email address(es) you will be sending from have been authorised for your account in our Control Panel .
  • These instructions assume your email account has already been setup and is collecting email correctly.
  • Take a note of any settings you change.
  • Only change the items specified - you should not need to change either your email address, POP3 server, POP3 username / password.
  • We have instructions for both default SMTP port and alternate SMTP port configurations - alternate port is generally used if your ISP blocks the normal port 25 SMTP access (as many do these days!).

Step One

  • Load Mozilla Thunderbird 3.0
  • From the main screen open the 'Tools' menu and then select 'Account Settings...'
Thunderbird v3.0 - Step 1 - Go the Tools menu and click Accounts Settings

Step Two

  • Select 'Outgoing Server (SMTP)' in the left-hand column
  • Click 'Add...'
Thunderbird v3.0 - Step 2 - Click Outgoing Server SMTP and then click Add..

Step Three

  • Enter 'AuthSMTP' as the description
  • Enter the 'Server name' as the SMTP server we supplied with your signup email
  • Enter the port number as '2525'
  • Enter the AuthSMTP username (it will ask for your password when you first go to send a message)
  • IMPORTANT: 'username' is an example - if your AuthSMTP username was 'ab12345' enter it as that and *not* as 'authsmtp.ab12345'
  • Make sure 'Use secure connection' is set to: No
  • Click 'Ok'

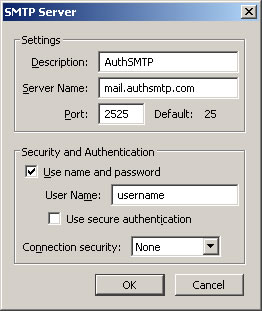

Thunderbird v3.0 - Step 3 - Enter AuthSMTP as Description, enter AuthSMTP's outgoing mail server, change the port to alternative port 2525, tick use and then enter your AuthSMTP username, use secure connection should be set to No and then click OK

Step Four

  • You now have a separate SMTP account setup using the AuthSMTP service
  • You may wish to set this as the default SMTP server by clicking 'Set Default'
  • Click 'OK'

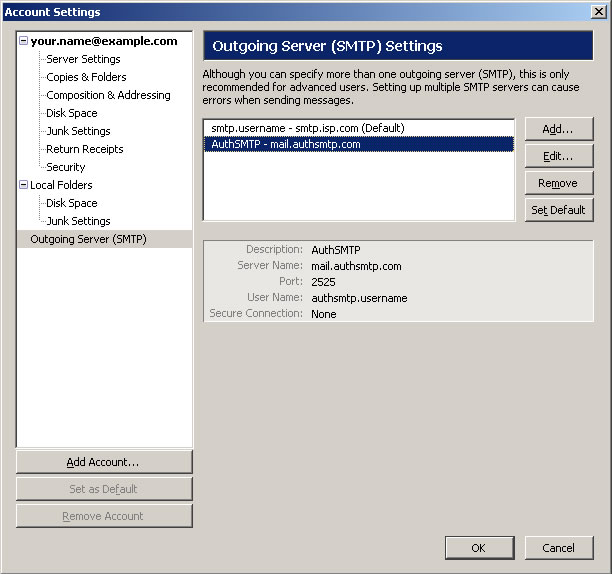

Thunderbird v3.0 - Step 4 - SMTP mail replay service setup completed

Step Five

  • You should now be back to the main Thunderbird 3.0 screen
  • Close Thunderbird 3.0 and then reload
  • Check you are online then test to ensure you can send mail correctly
  • It will prompt you for your AuthSMTP password the first time you try to send email
  • All done!
