Microsoft Outlook 2010 - Alternate Port - Setup Guide
Important Points
- First you need to make sure the email address(es) you will be sending from have been authorised for your account in our Control Panel .
- These instructions assume your email account has already been setup and is collecting email correctly.
- Take a note of any settings you change.
- Only change the items specified - you should not need to change either your email address, POP3 server, POP3 username / password.
- These instructions are only for Microsoft Outlook 2010 - for other email programs please see How To Setup AuthSMTP or contact us.
- We have instructions for both default SMTP port and alternate SMTP port configurations -alternate port is generally used if your ISP blocks the normal port 25 SMTP access (as many do these days!).
Step One
- Load Microsoft Outlook 2010
![Outlook 2010 - Step 1 - Open Outlook 2010 - Click on icon](/images/setup/outlook-2010-1.jpg)

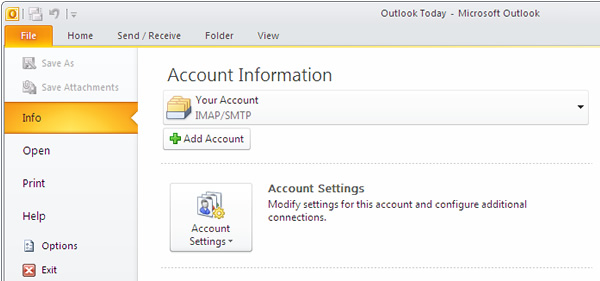

- Go to the 'File' tab
- Go to the 'Info' section
![Outlook 2010 - Step 1a - Go to the File tab](/images/setup/outlook-2010-2.jpg)
Step Two
- Click on 'Account Settings'
- Click the drop-down button titled 'Account Settings...'
![Outlook 2010 - Step 2 - Click Account settings](/images/setup/outlook-2010-3.jpg)
Step Three
- Select your email account from the list.
- Click the 'Change...' button
![Outlook 2010 - Step 3 - Click the Change button](/images/setup/outlook-2010-4.jpg)
Step Four
- Change the 'Outgoing mail server (SMTP)' to the SMTP server we supplied with your signup email
- Click the 'More Settings...' button
![Outlook 2010 - Step 4 - Change outgoing mail server to AuthSMTP's and then click More Settings](/images/setup/outlook-2010-5.jpg)

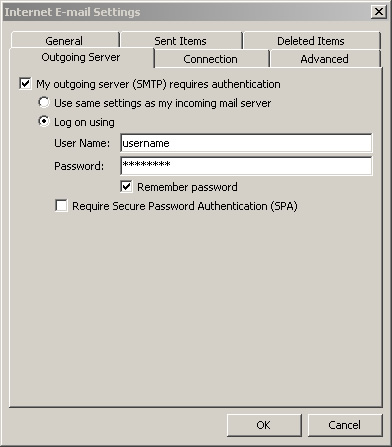

Step Five
- Select the 'Outgoing Server' tab.
- Tick 'My outgoing server (SMTP) requires authentication'
- Select 'Log on using'
- Enter the AuthSMTP username and password we supplied when you signed up
- Tick the 'Remember password' option
![Outlook 2010 - Step 5 - Go to the Outgoing Server tab, tick outgoing server requires authentication and enter your AuthSMTP username and password](/images/setup/outlook-2010-7.jpg)
- Click 'OK'

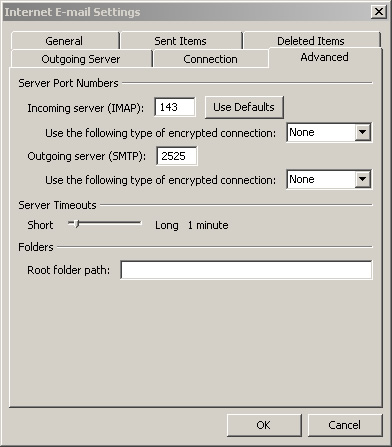

Step Six
- Select the 'Advanced' tab.
- Change the 'Outgoing server (SMTP)' to '2525' (or 23, 26)
![Outlook 2010 - Step 6 - Go to the Advanced tab and set the SMTP port to 25](/images/setup/outlook-2010-8-alt.jpg)
- Click 'OK'
Step Seven
- Click the 'Next >' button
![Outlook 2010 - Step 7 - Click Next and then Finish to complete setup of AuthSMTP outgoing email relay service](/images/setup/outlook-2010-10.jpg)
- In the next window click 'Finish'
- In the 'Account Settings' window click 'Close'
Step Eight
- You should now be back to the main Outlook 2010 screen
- Close Outlook 2010 and then reload
- Check you are online then test to ensure you can send mail correctly
- All done!
