Microsoft Messaging - Windows Mobile 6 - Setup Guide

Important Points

• First you need to make sure the email address(es) you will be sending from have been authorised for your account in our Control Panel .

• These instructions assume your email server / account has already been setup and is collecting email correctly.

• Take a note of any settings you change.

• Only change the items specified - you should not need to change your incoming email settings.

• These instructions are only for Windows Messaging on Windows Mobile 6 -for other email programs please see How To Setup AuthSMTP or contact us.

• Windows Messaging appears to try to use SSL connections even if you tell it not to use them - for this reason we recommend you enable SSL connections for your AuthSMTP account in the Control Panel first.

Step 1

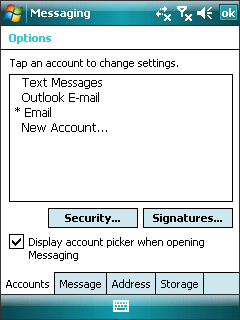

• Load Messaging on your device - click 'Menu' and select 'Options' - it should look something like this:

Step 2

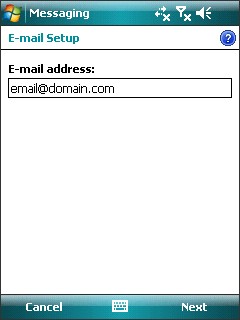

• Click on your email account and it should look something like this:

Step 3

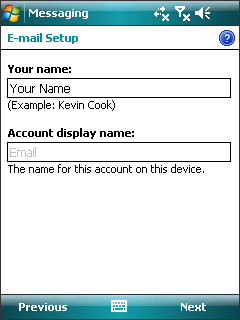

• No changes should be needed so click 'Next' then it should look something like this:

Step 4

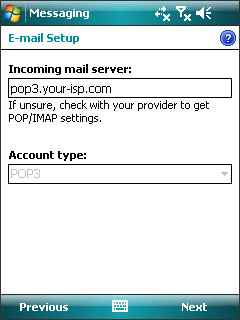

• No changes should be needed - so click 'Next' then it should look something like this:

Step 5

• No changes should be needed - so click 'Next' then it should look something like this:

Step 6

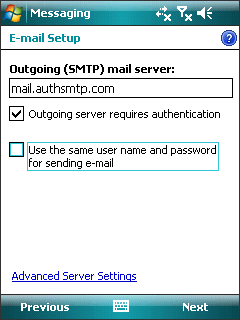

• Enter the SMTP server we provided in the signup instructions (usually:mail.authsmtp.com) and tick 'Outgoing server requires authentication'.

• Click 'Advanced Server Settings' and should look something like this:

Step 7

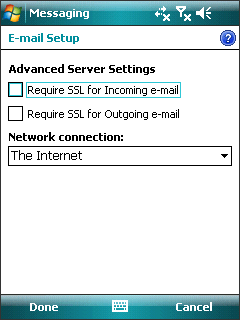

• Uncheck 'Require SSL for Outgoing e-mail' although see the note above'SSL connections' in the box at the top of this page - then click 'Done' to be taken back to the previous page:

Step 8

• Click 'Next' then it should look something like this.

Step 9

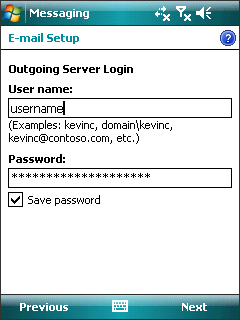

• Enter your AuthSMTP username (typically something like: aa12345) and AuthSMTP password - both are case sensitive and click to 'Save Password'then click 'Next':

Step 10

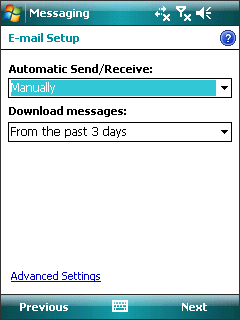

• No changes are usually required to this section for setting up outgoing mail - click'Next'.

Step 11

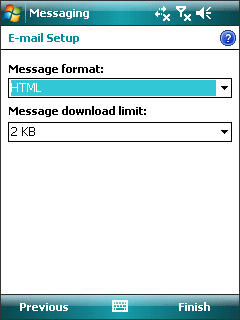

• No changes are usually required to this section for setting up outgoing mail - click'Finish'

• Done!
